Specifications:

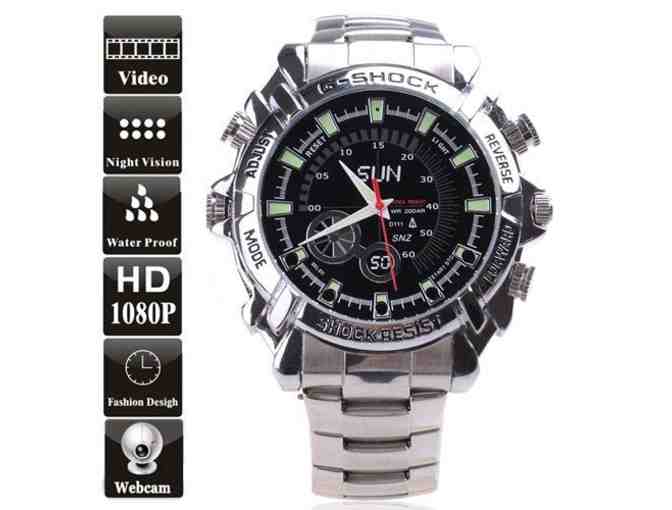

• Function: Waterproof 32GB 1080P watch DVR


• Main Features:
  - Special design, exquisite appearance with stainless steel strap, fine workmanship, also can resist slight shock.
  - It is a real watch and displays the time in seconds, minutes and hours, but also can use as a digital video recorder.
  - Support waterproof function, can up to 15 meters deep under the water.
  - With Infrared Ray, supports night vision, can record even in complete darkness.
  - With HD pinhole camera, also support PC camera function.
  - Application: Meeting recording, Monitoring recording, Obtain evidence, Webcam, Applied occasion, Family, Office, Corporation, School, Outdoors, etc. Various occasion.


• Characteristic:
  - Function: Video, photograph, recording
  - Clock Adjustment: Real-time clock adjustment


• Built-in MIC: Yes


• Video:
  - Format: AVI
  - Code: M-JPEG
  - Resolution: 1920 x 1280
  - Frame Rate: 30 fps


• Image Capturing:
  - Resolution: 4032 x 3024
  - Format: JPG
  - White Balance: Auto


• Material: Stainless steel


• Memory Capacity: Built-in 32GB


• Vision Angle: 90 degree


• Software: Operation system or major audio and video playback software


• OS: Windows ME / 2000 / XP / 2003 / Vista , Mac OS 10.4, Linux


• Voltage: DC-5V


• Data Transfer Interface: Mini 4 Pin USB


• Battery: Li-ion Battery


• Temperature:
  - Operate: - 10 ~ 60 Degrees Celsius
  - Storage: - 10 ~ 70 Degrees Celsius


• Operating Humidity: 20 % ~ 80 % RH


• Color: White


• After Sales Service: 1 Year Warranty

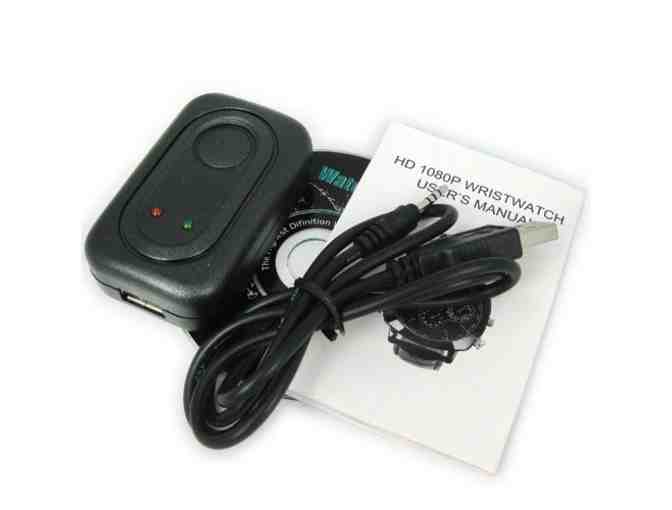

• Package Include:

• 1 x Camera Watch


• 1 x USB Cable


• 1 x Adapter


• 1 x CD


• 1 x User Manual

Operational Guidance:

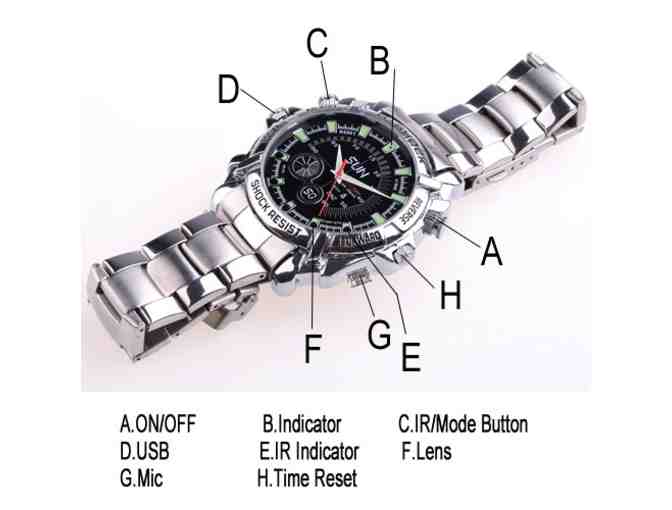

• Operation:


• 1. Video:
  a. Press Button A until the blue light is burning.
  b. Release the button.
  c. The blue indicator will be off after it flashes three times within four seconds during recording video with audio.
  d. Press Button A again, saving the file.


• 2. IR Indicator:
  a. Start IR Indicator: In the status of recording Video with audio. Press the button C for about 5 seconds, then release it, the red indicator flashes three time.
  b. Stop IR Indicator: Press and release button C for one time, the blue light will flashes three times. the IR Indicator is off.


• 3. Shooting an Image:
  a. In the status of recording video with audio, press the Button A for two times, the blue indicator is burning.
  b. Press the Button C for one time, the Red Indicator is burning.
  c. Press the Button A for one time, the Red Indicator flashes one time. then shooting a picture successfully.


• 4. Sound Record:
  a. In the status of Recording Video with Audio, press the Button A for two times, the blue indicator is burning.
  b. Press the Button C for one time, the Red Indicator is burning.
  c. Press the Button C again, for one time, the Red Indicator and Blue Indicator are burning at the same time
  d. Press the Button A for one time, the Red Indicator and Blue Indicator will always flash alternately .
  e. Press the Button A once again. Saving the Audio file.


• 5. Web Camera:
  a. Turn on the item.
  b. Connect camera and computer with original USB Cable.
  c. Open the movable Disc in your computer.
  d. Install driver for the PC camera function.
  e. The Standard Camera sign will show on screen of computer.
  Notice: If the computer can not recognize the camera, please try again.


• 6. Time Reset:
  a. Handle Reset:
  a. Turn off the device.
  b. Connect the Camera to the computer with original USB Cable.
  c. The Movable Disc will be shown on computer.
  d. Open the Movable Disc.
  e. Create a text file, Input 2012.01.24 13:30:30 Y.
  f. Save the file as time.txt.
  g. Secure delete the watch camera from the computer.
  b. Auto Reset :
  a. Turn off Camera.
  b. Connect the Camera to the computer with original USB Cable.
  c. The Movable Disc will be shown on computer.
  d. Open the Movable Disc. Click the file WriteTime.exe in the folder of Movable Disc for two times.
