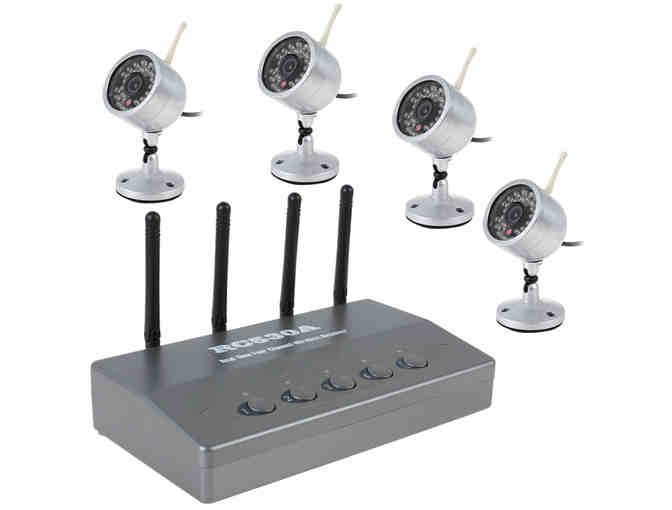

Waterproof 2.4GHz Wireless Security Kits with 4 Cameras + 25m Night Vision


Item Number: 500

Time Left: CLOSED

Value: Priceless

Online Close: Jun 12, 2015 10:00 PM EDT

Bid History: 1 bid - Item Sold!

Description

Supporting 25m night vision and waterproof. Supporting Schedule record mode, Motion detection mode, Sensor alarm record mode and Recycling record mode. P.T.Z control function, Multi-channel display. CPU and storage resources saving by advanced technology ,Support buzzer, email alarm out. Can greatly decrease fragmented files while using NTFS partition.





Specifications:



  • Function: Wireless security kits

  • View and Record 4 images simultaneously

  • Support 25m night vision and waterproof

  • Schedule record mode

  • Motion detection mode

  • Sensor alarm record mode

  • Recycling record mode

  • Camera works with wire and wireless

  • P.T.Z control function

  • Users management

  • Multi-channel display

  • Support 320x240/640x480 (NTSC), 352x288/704x576(PAL) standard resolutions

  • Image color adjustable for each channel, including contrast, lightness, hue and saturation

  • MPEG4 compression format, greatly reduce HDD usage

  • Powerful video playing back functions, including playing back, pause, stop, fast-forward, single-frame play and image capture

  • Support advanced search mode. Users can search by date/time, camera, record mode, and random combination of the three methods

  • Support recorded files backup, delete by date/time, camera

  • Convenient to extend system functions by software upgrade

  • CPU and storage resources saving by advanced technology

  • Remote Surveillance and P.T.Z control through LAN, Intranet, and Internet

  • Support alarm pre-record

  • Support buzzer, email alarm out

  • Can greatly decrease fragmented files while using NTFS partition

  • User-friendly graphical user interface

  • Transmission Frequency: ISM 2,400 MHz~2,483 MHz 4CH

  • Modulation Mode: FM

  • USB: 2.0

  • Operating Temperature: 0 ~ +50 Degrees Celsius

  • Storage Temperature: -20 ~ +60 Degrees Celsius

  • Operating Humidity 85%RH


Camera Specifications:



  • Camera TV System: PAL/ NTSC

  • Validity Pixel:
    - 628(H) x 582(V)(PAL)
    - 510(H) x 492(V)(NTSC)

  • Image Device: 1/3" OmnVision CMOS

  • Horizontal Definition 380TV Line

  • Angular Field of View: 45 Degrees(f=6mm)

  • Minimum Illumination: 0 Lux

  • Scanning Frequency(H):
    - 15.625KHz (PAL) (br) - 15.734KHz (NTSC)

  • Scanning Frequency
    - 50Hz(PAL)
    - 60Hz(NTSC)

  • Power Adapter: DC 12V/500mA

  • Dimension(L x W x D):57 x 57 x 68 mm


Receiver Specifications:



  • Receiving Sensitivity: -85dB

  • Video Output: 75Ω/1Vp-p

  • Audio Output: 10KΩ/500mVp-p

  • Power Adapter: Input AC Power

  • Frequency: 50/60Hz

  • Voltage: 100 ~ 240V

  • Output DC Power: 5V/1.5A

  • Outline Size: 205 x 120 x 43 mm

  • Receiving frequency:
    - CH-1: 2414MHz
    - CH-2: 2432MHz
    - CH-3: 2450MHz
    - CH-4ï¼Â?2468MHz

  • Power Consumption: < 8W

  • Validity Distance: 150m(Open area)

  • Transmission power:300mW

  • After Sales Service: 1 year warranty

Special Instructions

Package Include:



  • 4 x Wireless Camera


Image result for 4 CH Wireless IR Night Vision Outdoor Waterproof 4 Cameras DVR Receiver System with USB interfaceImage result for 4 CH Wireless IR Night Vision Outdoor Waterproof 4 Cameras DVR Receiver System with USB interface
