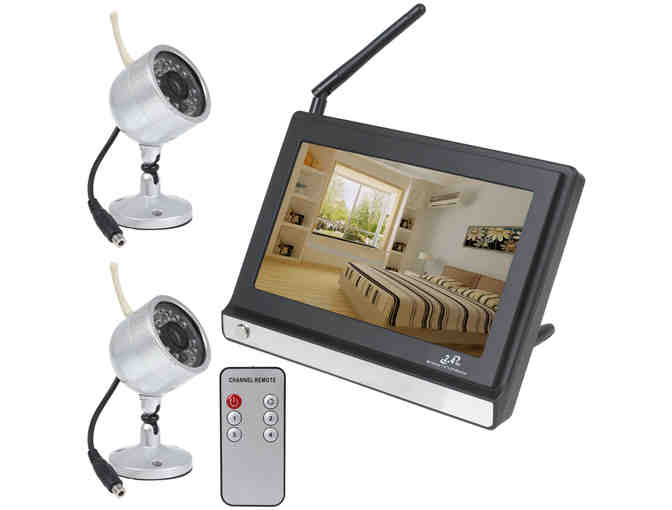

Monitor: 7.0 inch LCD screen, support 4-channel anti-interference transmission, 2400-2485MHz frequency, 100m wireless transmission distance. Camera: 1/3 inch CMOS image sensor, 380TV lines horizontal resolution, 15m nightvision range, with weather-proof design, built- in microphone.

Specifications:

Monitor Specifications

• 2.4GHz wireless 7.0 inch LCD screen


• 380 TV lines clear picture display


• Built-in IR lights for night vision range


• Built- in microphone for audio monitoring


• Weather-proof design for outdoor usage


• 4-channel available to avoid interference


• Channel scan and channel skip for multi-camera usage


• Transmission frequency: ISM 2400MHz ~ 2485MHZ


• Modulation mode: FM


• Antenna type:
  - Camera: Omni
  - Receiver: Directional


• Min. 100m transmission distance without blocks


• Antenna port: 50ohm SMA


• Receiving sensitivity: < / = -85dBm


• Video output level: 1 Vp - p@75ohm


• Audio output: level: 1 Vp - p@600ohm


• Operating temperature: -10 ~ 50 degrees Celsius / 14 ~ 122 F


• Storage temperature: -20 ~ 60 degrees Celsius / -4 ~ 140 F


• Operating humidity: 85% RH


• Power supply: DC 12V 1.5A


• Dimensions (W x D x H): 190 x 140 x 20 mm

Wireless Camera Specifications

• Imaging sensor: 1/3 inch CMOS


• CMOS total pixels:
  - PAL: 628 x 582
  - NTSC: 510 x 492


• Horizontal resolution: 380TV lines


• View angle: 62 degrees


• Minimum illumination:1.0LUX / F2.0 & 0LUX (IR ON)


• Gain control: Automatic


• Night-vision range: 15m


• Wire length: 1.5m


• Waterproof


• After Sales Service: 1 Year Warranty
