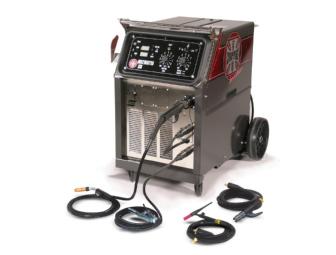

Industrial Ready-To-Weld Multi-Process Package

• Advanced SuperSwitchTM technology makes multi-process welding a breeze


• Simplified setup makes it easy to select Mig, Tig, or Stick


• DC welding output from 15 to 300 amps; rated 260 amps at 50% duty cycle


• Output pre-set capability for quick set-up


• Two digital meters for easy fine tuning


• Heavy Duty Four Drive Roll stand


• Convenient, large capacity built-in tool box


• Fan on demand


• Dual "Easy-On" cylinder tray

Specifications

Rated DCCV or DCCC Output

50% duty cycle (NEMA Class I),260 amps @ 27 vdc

Output Current Range

Mig (GMAW): 35-300 amps

Tig (GTAW): 10-300 amps

Stick (SMAW): 40-300 amps

Open Circuit Voltage

Mig (MGAW): 70 vdc

Tig (TGAW): 20 vdc

Stick (SMAW): 70 vdc

Primary Input Voltage & Current @ 260 amp rated load

208/230 vac, 60 Hz, 1 ph, 57/52 amps

Wire Feed Range: 65-675 ipm (1.6 - 17.3 m/min)

Net Weight: 250 lbs. (112.5 kg)

Shipping Weight: 290 lbs. (130.5 kg)

WxLxH: 25.3in. (64cm) x 39.5in. (100cm) x 33.5in. (85cm)
